YORKVILLE

YXL15SP

YXL15SP

YXL15SP

$1,800.00
$2,015.00 $1,800.00
Sale Sold out

YXL 15-inch / 3-inch - 1000 Watts

The YXL15SP offers our best ratio of power, performance and value for an active subwoofer enclosure. Providing 500 watts (1000 watts peak) with efficient speaker components, the YXL Series is extremely loud for its size.

Features

  • 1000 watts (peak) 500 watts (program)
  • Superior DSP processing with component protection
  • 15-inch woofer with 3-inch voice coil

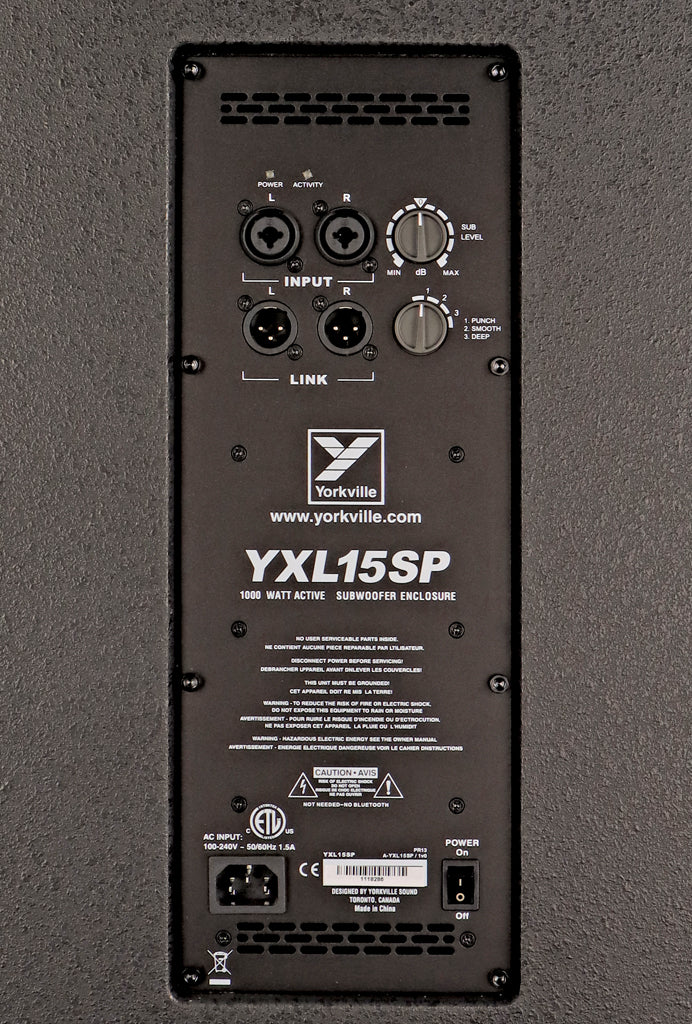

  • Recessed control panel
  • Master Level control with Activity indicator (cabinet level adjustment)
  • 3 Performance modes, Punch, Smooth and Deep
  • 2 x XLR/ 1/4-inch Combi Inputs
  • 2 x XLR Link outputs
  • 12mm plywood, latex paint
  • Tough, full length metal grille

Specifications

System Type Powered Sub Woofer
Active or Passive Active
Power Rating (Watts) 500 Watts Program (1000 Watts Peak)
Max SPL (dB) 128dB Peak
Frequency Response (Hz +/- 3dB) 45 - 100 (Hz +/-3dB)
LF Driver(s) 15-inch (3-inch voice coil)
LF Power Rating(Watts) 500 Watts Program (1000 Watts Peak)
LF Amplifier Type Class D
Cooling Scheme Speed controlled fan
Power Cable Yes
Power Switch Yes
Inputs 2 x Main IN XLR Female/ 1/4" Combi, 2 x LINK XLR Male
Level Controls Master
EQ Controls Push button select, Punch, Smooth, Deep
Limiter Multiband excursion, RMS, Rail
Feet Rubber
Bar Handles 2 x Side
Enclosure Materials 12mm Plywood, Metal grille
Grille Powder Coated Steel with Grille Cloth
Other Details Rubber feet on bottom and side with the monitor wedge
Dimensions (DWH xbackW, inches) 19 x 18 x 24
Dimensions (DWH xbackW, cm) 48 x 46 x 61
Weight (lbs/kg) 62/28.1
