YORKVILLE

YXL10

YXL10

YXL10

$1,000.00
$1,085.00 $1,000.00
Sale Sold out

YXL 10-inch / 1-inch - 300 Watts - Passive Cabinet

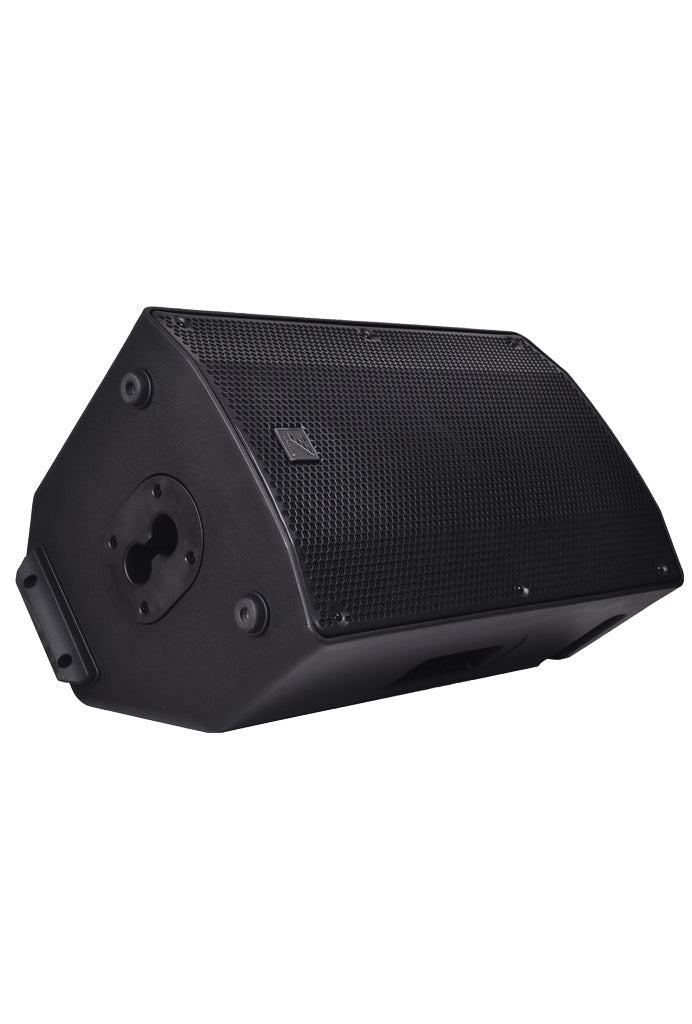

The YXL cabinets use a single driver and 90 x 40 degree horn with 1-inch throat and 1-inch compression driver. Constructed from strong Polypropylene, YXL is poised to uphold Yorkville's reputation for reliability and durability. The cabinets can be positioned upright or used as a monitor wedge.

Features

  • 300 Watts (Program)
  • 8 Ohms
  • 10-inch woofer with 2-inch voice coil
  • 1-inch compression driver
  • 90° x 40° HF dispersion
  • Polypropylene cabinet construction

Specifications

System Type Passive Loudspeaker
Active or Passive Passive
Power Rating (Watts) 300 Watts Program
Sensitivity (dB @1Watt/1m) 97dB
Max SPL (dB) 122dB Continuous
Frequency Response (Hz +/- 3dB) 55 - 16k (Hz +/-3dB)
Dispersion (°H x °V) 90 x 40
Crossover Frequency (Hz) 1.6kHz
HF Horn Integrated into Baffle
LF Driver(s) 10-inch (2-inch voice coil)
Feet Rubber
Bar Handles 1 x Side / 1 x Back
Flying Hardware 2 (Top)
Optional Flying Hardware Yes
Enclosure Materials Polypropylene, Metal grille
Baffle Material Polypropylene
Grille Powder Coated Steel with Grille Cloth
Other Details Rubber feet on bottom and side with the monitor Wedge
Dimensions (DWH xbackW, inches) 11 x 13.25 x 20.5
Dimensions (DWH xbackW, cm) 28 x 33.5 x 52
Weight (lbs/kg) 29.9 / 13.6
