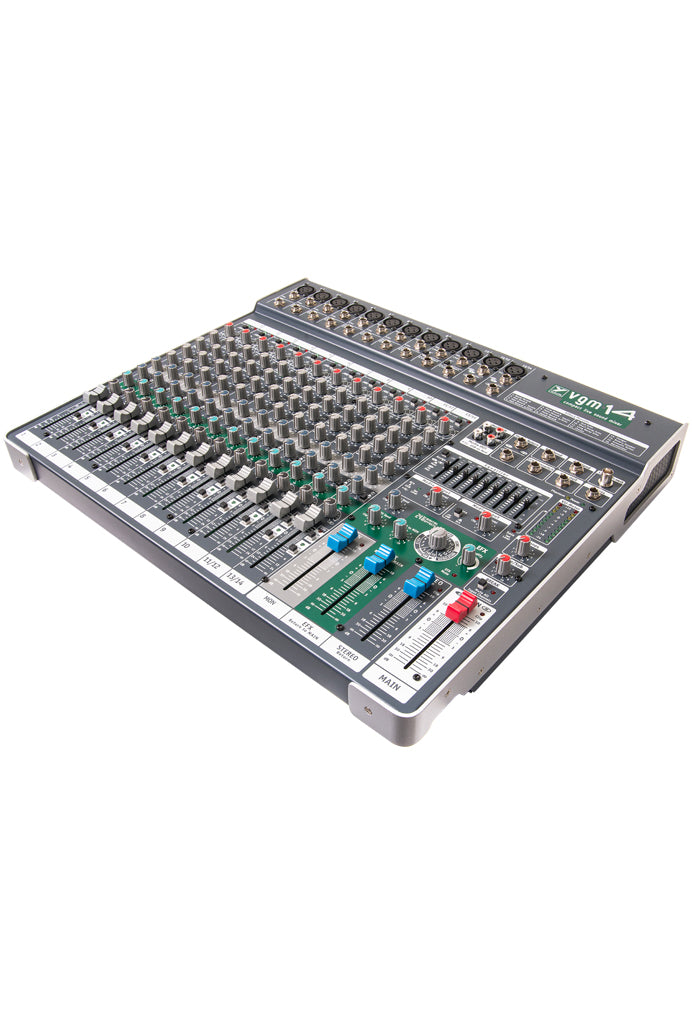

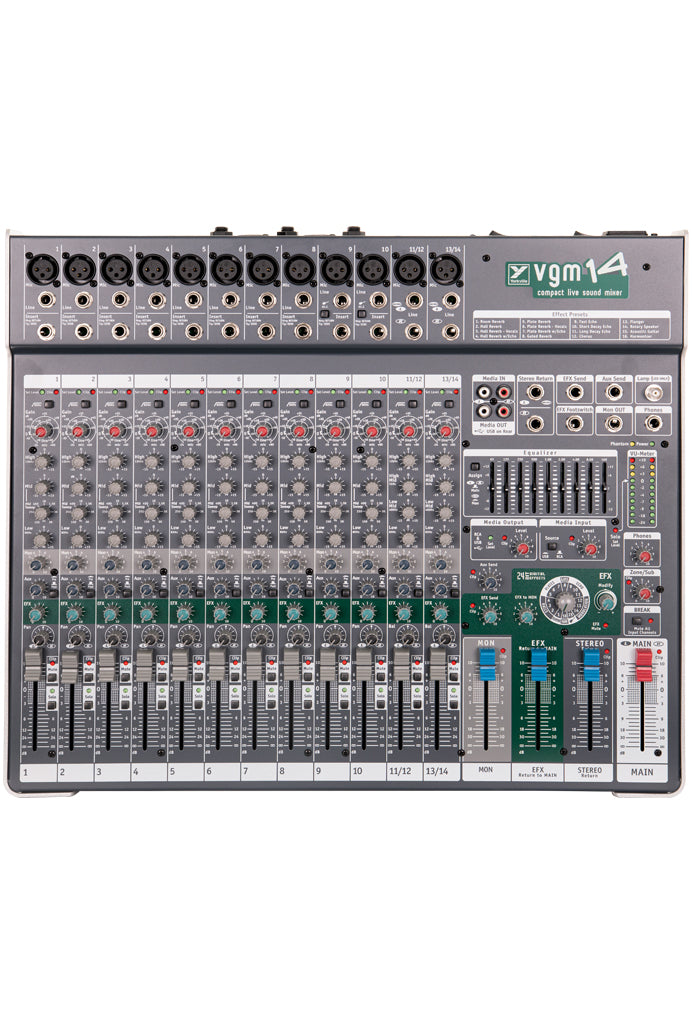

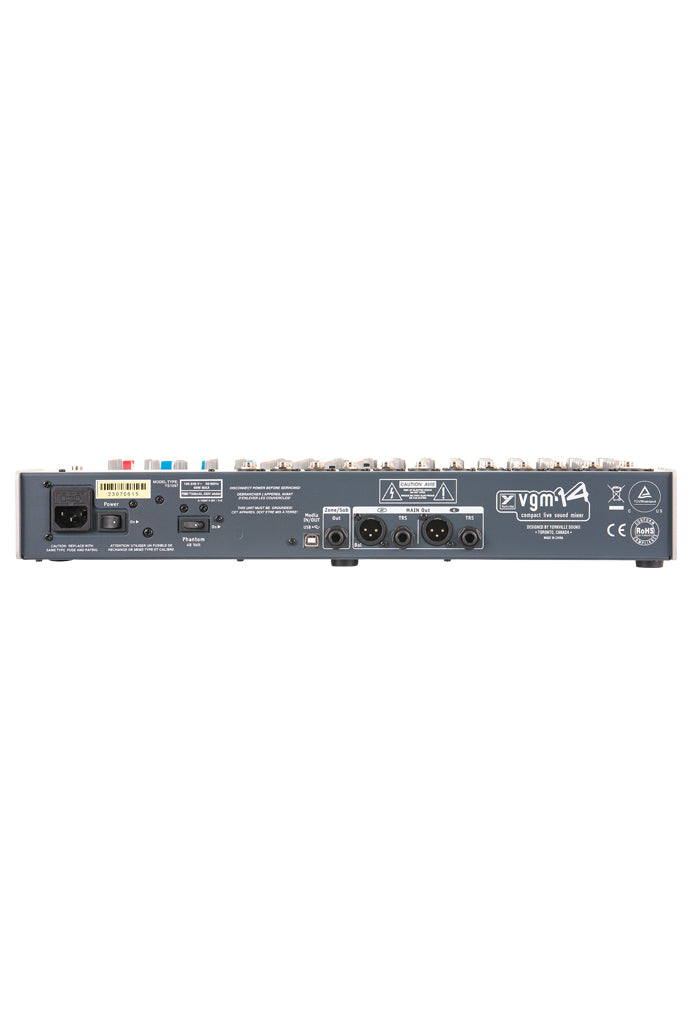

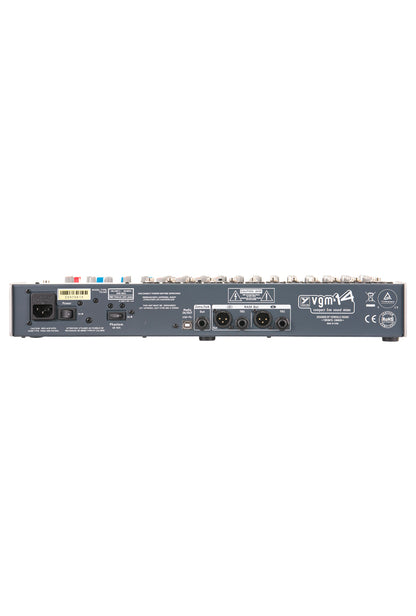

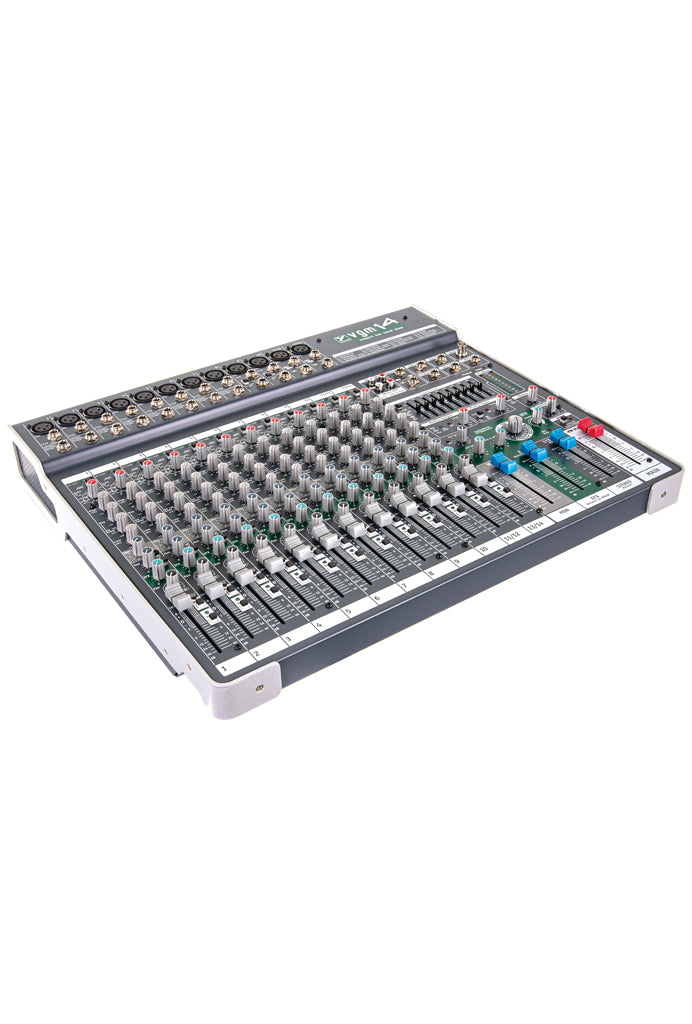

VGM14

Features

• Ten Mono Input Channels with XLR & ¼-inch TRS inputs
• Channel 9 & 10 Mono Inputs have a Hi-Z input switch
• Two Additional stereo line input channels (11/12 and 13/14)
• Additional XLR mono input per stereo channel for maximum 12 Mic inputs
• Input gain level control with Non-defeatable soft multi-slope compressor on every input
• 3-band EQ with Sweep Mid, High Pass Filter, Monitor, Aux and Effect Send, Clip LED, Mute Switch and Pan control per Channel. 4-band EQ's on Stereo Channels
• 60mm Faders Throughout
• Global 48 volt Phantom Power
• Stereo 9-band graphic EQ Assignable Main/Monitor
• Stereo RCA Media Outputs with Level Control
• BREAK Switch (mutes all input channels)
• Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch).
• USB Audio I/O
• Zone/Sub Output with Level Control
• Main stereo TRS phone and XLR outputs
• Sixteen 24-bit digital audio effects
• Effects TRS output jack
• Effects defeat footswitch jack
• Effects return to Main and Monitor
• Stereo Return TRS jacks with fader
• Headphone Level Control
• Dual 10-segment LED Output Meter
• IEC removable line cord receptacle (No Adaptors)
• Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.
