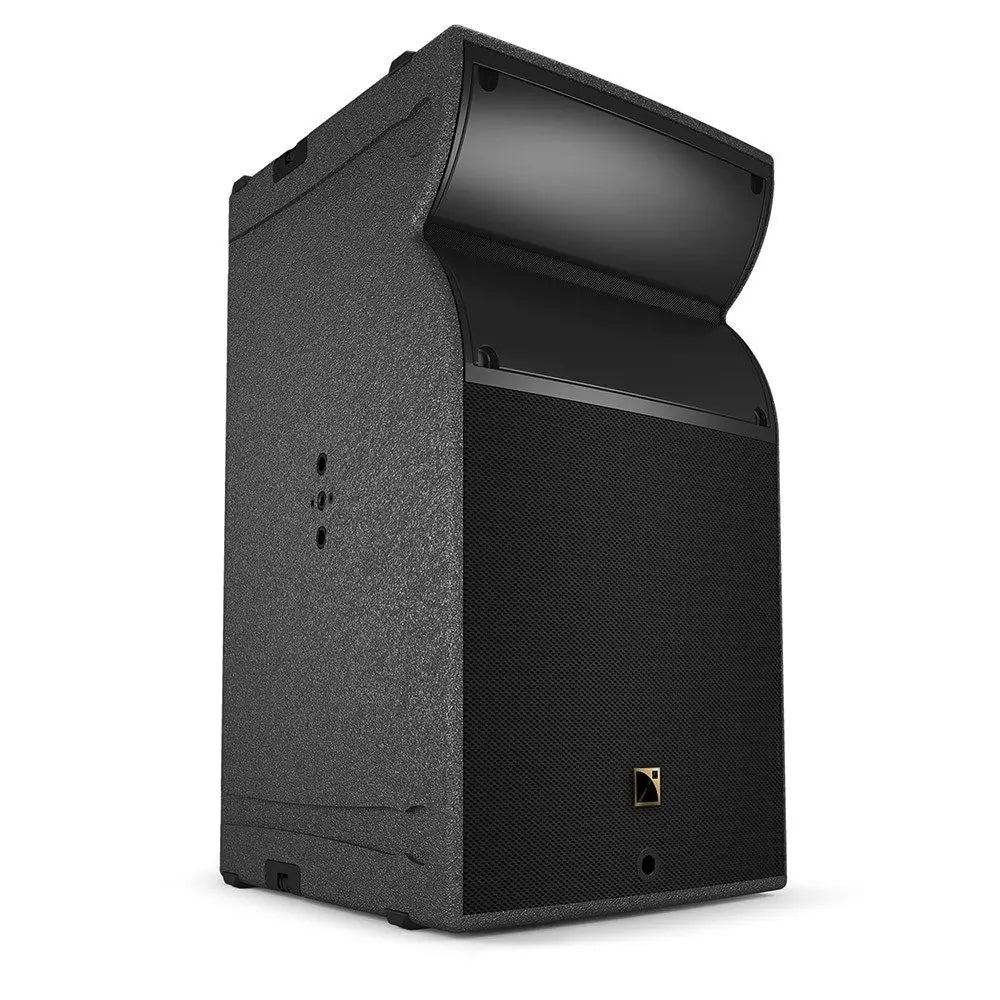

L-ACOUSTICS A15 FOCUS WIDE MEDIUM THROW LOUD A15 WIDE 2-WAY PASSIVE

Part of the A Series, A15 is a medium throw product line designed for production applications up to 45 m. The highly multifunctional family includes A15 Focus and A15 Wide, passive 15” systems with distinct coverage patterns. A15 products can be flown or stacked in combinations to form vertical or horizontal line sources or used individually as configurable directivity point sources. The A15 can adapt to virtually any audience geometry with two enclosure coverage options (10° or 30°), Panflex for user configurable waveguide directivity (70°, 110° or 90° asymmetrical) and a range of accessories for vertical or horizontal deployment.

A15 deployment requires a single preset that is optimized to provide amazing plug-and-play performance for both A15 models regardless of Panflex configuration. Performance can be further enhanced with L-Acoustics software optimization tools.

A15 provides the low frequency contour of a large concert system and the dedicated KS21 subwoofer can be groundstacked or flown with A15 products to reinforce contour and extend bandwidth to 29 Hz. The A15 family is a highly scalable system that can do it all – delivering concert level performance for events large and small or supplementing a larger L-Acoustics solution for the world’s biggest stages.

FEATURES

• Integrated rigging with safety check; ergonomic handles; ground runners; corner stops.
• 2 enclosures (Wide 30° and Focus 10°)
• 2 deployments (vertical and horizontal)
• 4 directivities with Panflex (70° / 90° L-R / 110°)
• Scalable and plug-and-play
• Very high output (141/144 dB SPL max)
• Extended bandwidth (42 Hz / 41 Hz)
• Solid LF contour (>10 dB)
• Simple, fast, integral rigging
• A15 FOCUS 2-way Passive WST 10 deg; 1 x 15" LF; 1 x 3"
