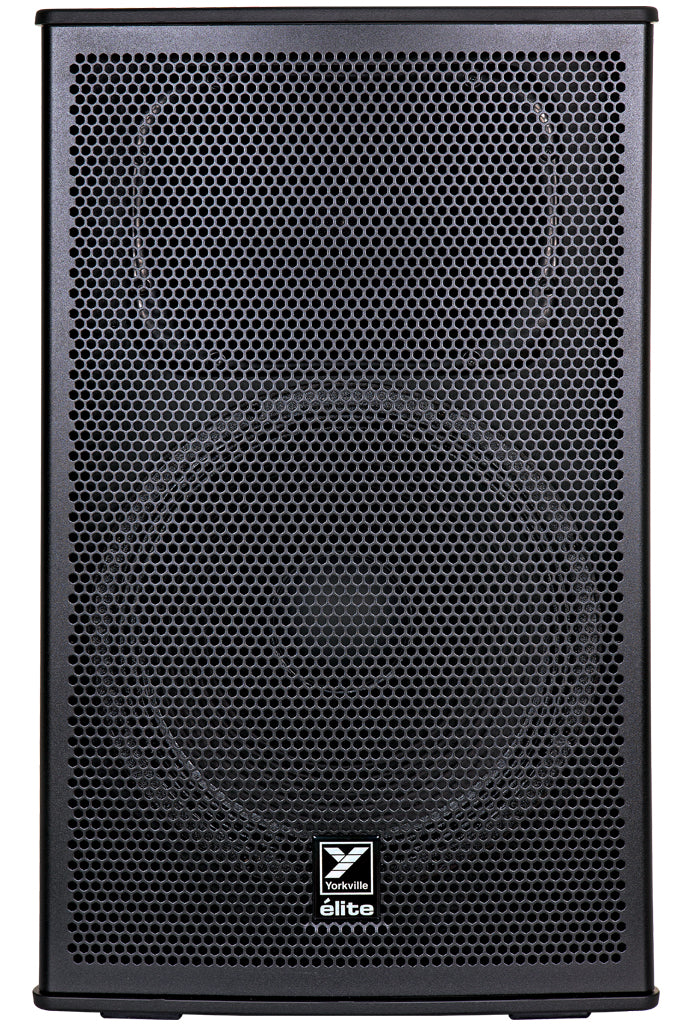

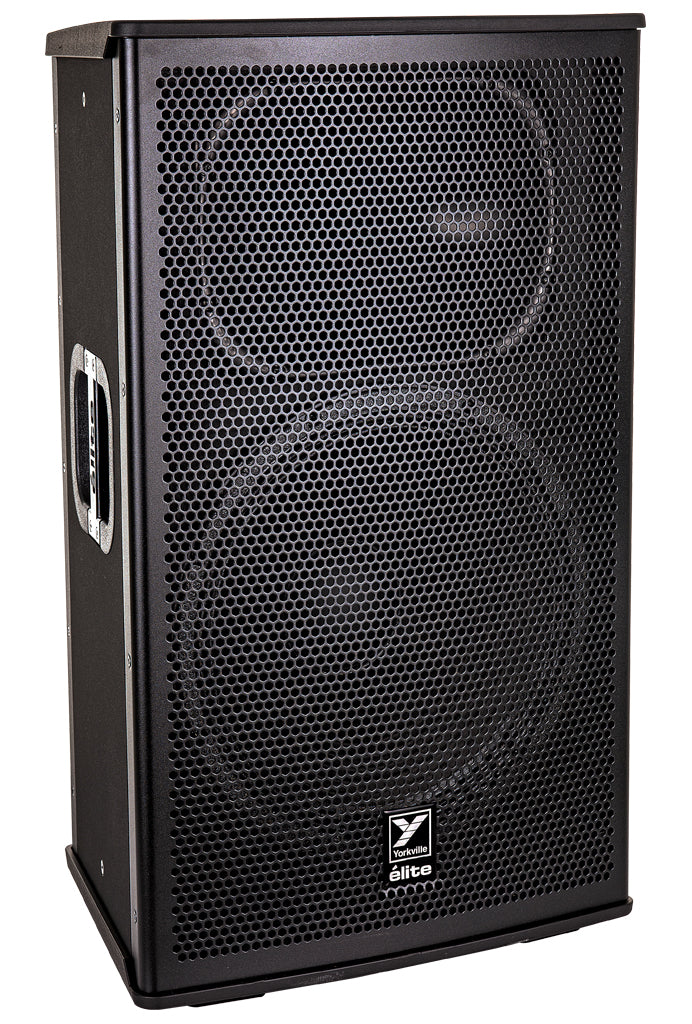

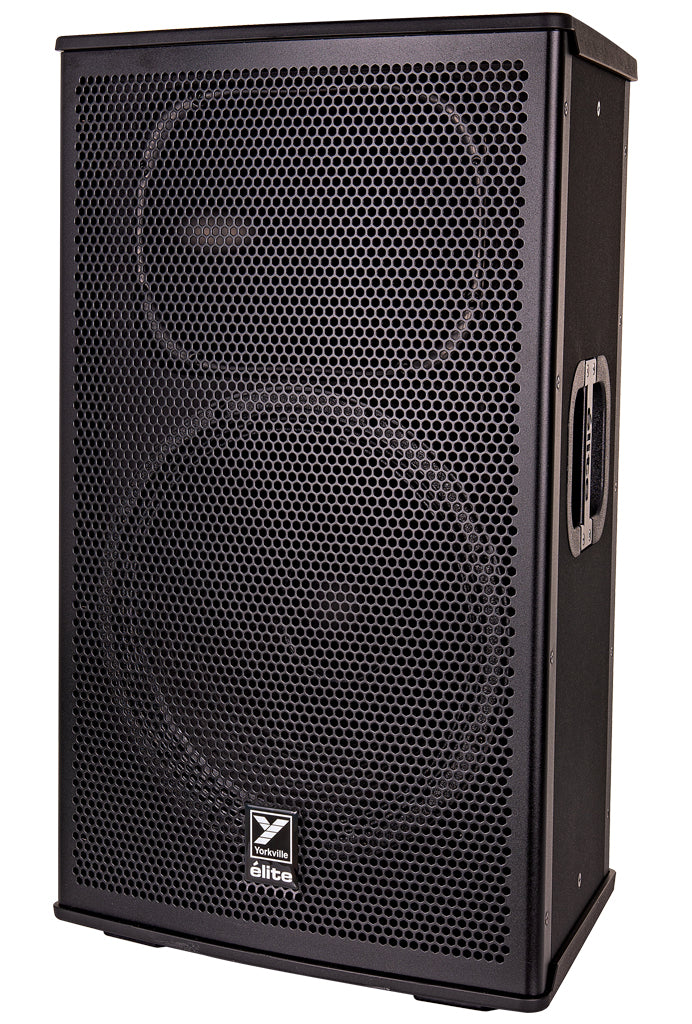

EF15



Building on the market success and positive user reaction to the Elite powered cabinets, Yorkville Sound introduces three new elite passive speakers. Now available in 10, 12 and 15-inch configurations, the passive elites' provide the perfect solution for installations and venues with existing power amps.



Features

• 15-inch Two-way Passive Loudspeaker
• 700 Watts (1400 Watts Peak / 450 Watts Continuous)
• 128.5dB Peak (125.5dB Continuous) Max SPL
• 55 - 18k (Hz +/- 3dB)
• Made In Canada

Specifications

System Type	Two Way
Active or Passive	Passive
Power Rating (Watts)	700 Watts (1400 Watts Peak / 450 Watts Continuous)
Biampable	No
Nominal Impedance (Ohms)	8
Sensitivity (dB @1Watt/1m)	97
Max SPL (dB)	128.5dB Peak (125.5dB Continuous)
Frequency Response (Hz +/- 3dB)	55 - 18k
Crossover Frequency (Hz)	1900
Driver Configuration	15-inch, 3-inch Diaphragm
HF Driver(s)	3-inch Voicecoil (Titanium Diaphragm)
HF Horn	ABS plastic custom Waveguide
HF Dispersion (°H x °V)	60x40
HF Protection	3xSK3 protection bulbs
LF Driver(s)	15-inch (3-inch voicecoil)

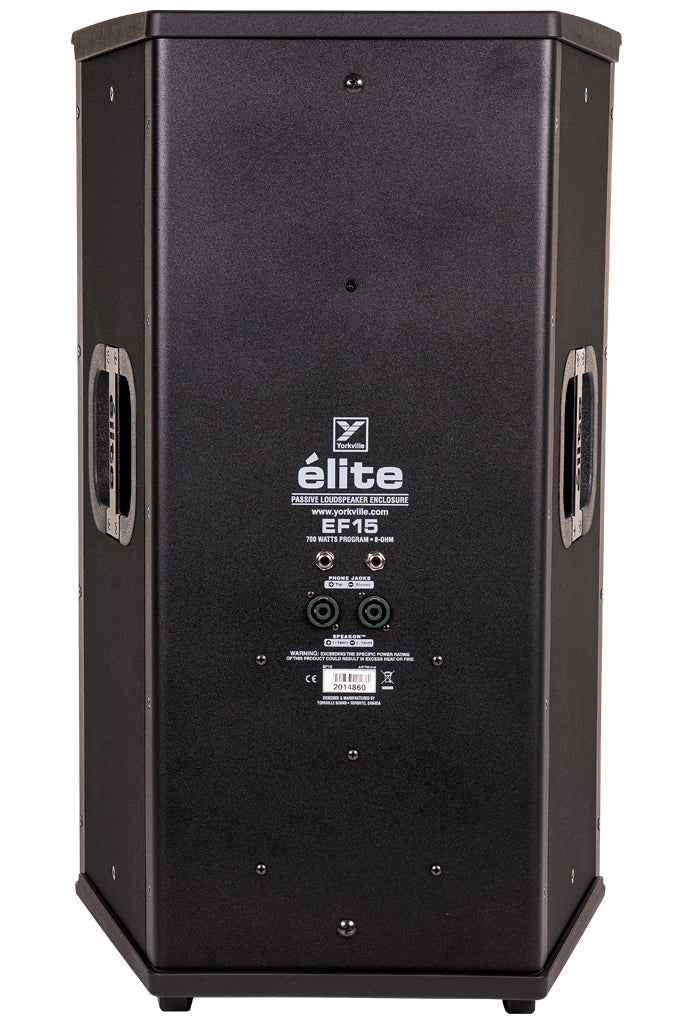

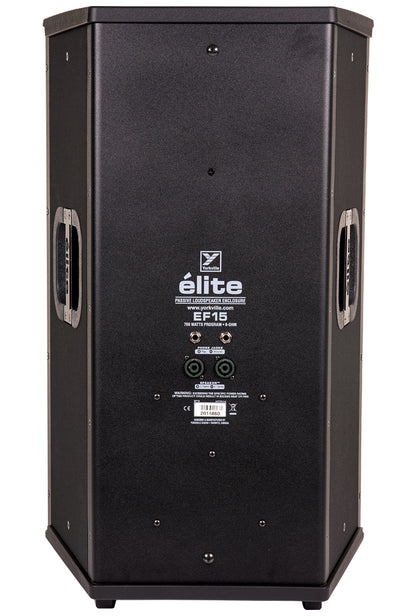

Inputs - 1/4" Jacks	2
Inputs - Speakon 4-pin	2
Bar Handles	2
Flypoints	8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback)
Pole Mount Adapter (1 3/8"-3.5cm)	Yes
Enclosure Materials	15mm (5/8inch) 11-ply Russian Birch
Grille	Perforated Metal
Covering / Finish	Black Ultrathane Paint
Dimensions (DWH xbackW, inches)	14 x 18.5 x 30 x 12
Dimensions (DWH xbackW, cm)	35.5 x 47 x 76 x 30.5
Weight (lbs/kg)	61 / 27.8
