The ultra-slim wedge speaker designed to be discreetly integrated in broadcast studios, theatre stages, congress facilities and wherever an unobtrusive and versatile wedge is needed.

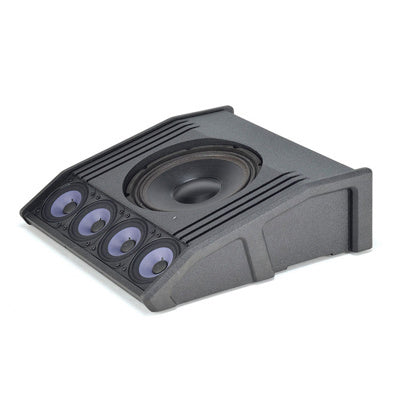

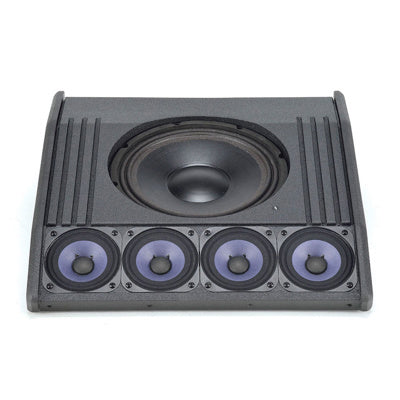

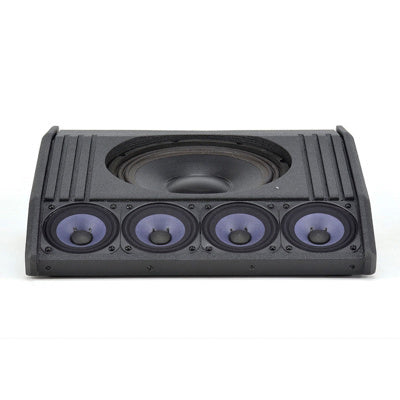

This 2-way system is equipped with 4x4"neodymium HF speakers and 1x10"woofer, placed in an exclusive anti-feedback acoustic configuration. The cabinet is driven by a 400 W RMS Digipro G3 amplifier and full remote control is enabled via RD-Net and Aurora Net software.
Digital Sound Processing allow a variable acoustic focus via on-board presets or via software. As a matter of facts, user can easily adapt the wedge performance to the application in use and to the speakers'needs, choosing among 4 different options: default, close narrow, close wide, far.

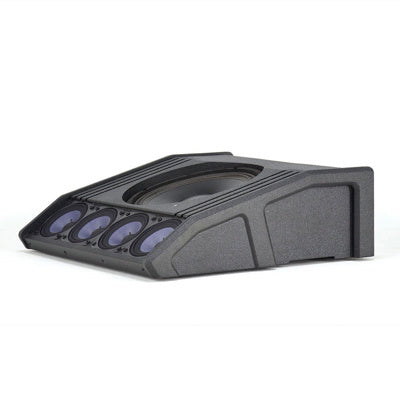

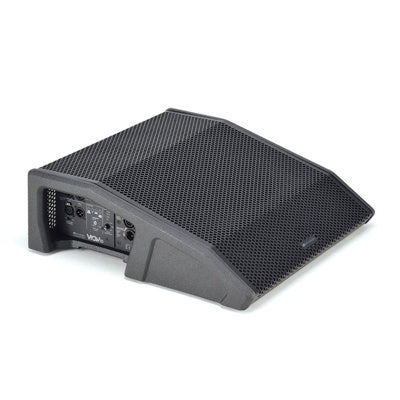

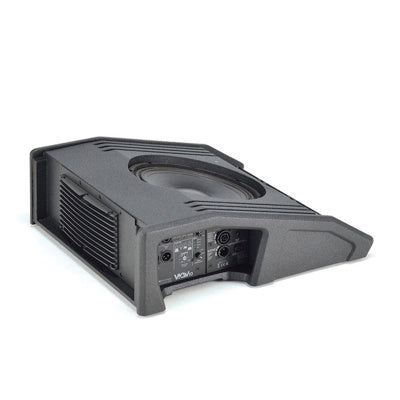

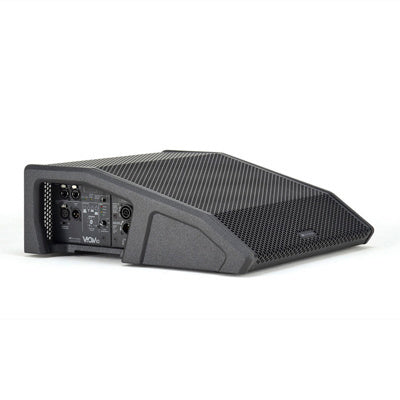

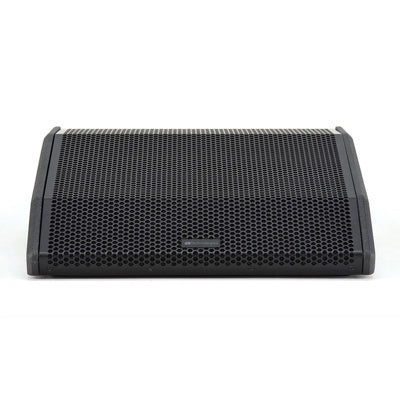

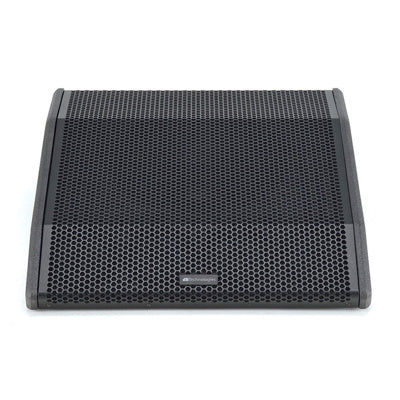

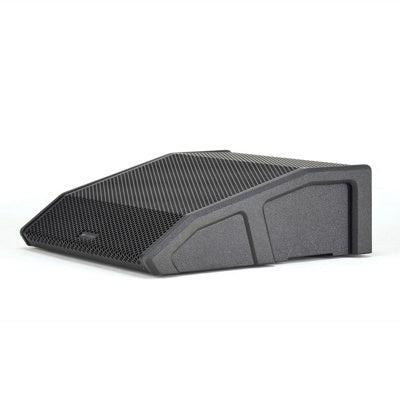

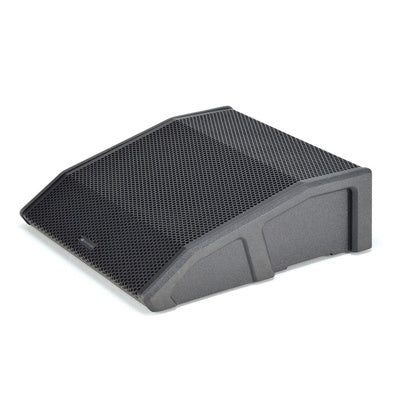

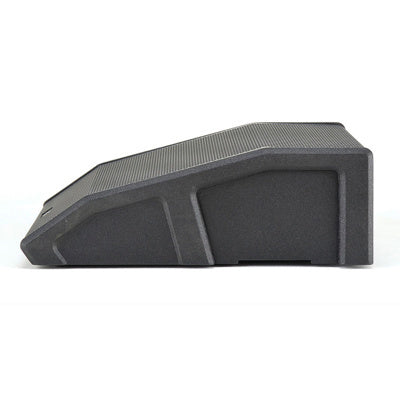

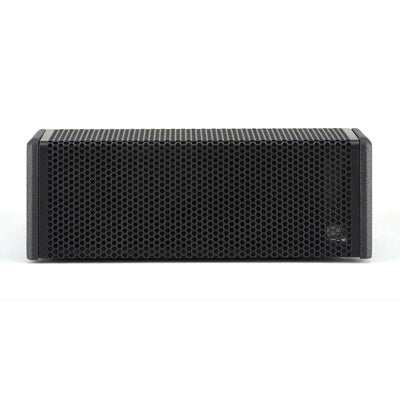

VIO W10's wooden cabinet comes with a black polyurea finish and an exclusive front-rear-grille design which contributes to a peculiar yet discreet look, with a special attention to details. In facts, an integrated handle is hidden on left side to ease transport and a special groove carved on bottom side facilitates the passage of cables under the cabinet, allowing a clean and tidy look on stage.
Technical Data
Speaker Type: 2-Way Active Wedge Monitor
Acoustical Data
Usable Bandwith [- 10 dB]: 58 - 15,000 Hz
Frequency Response [- 6 dB]: 68 - 14,000 Hz
Max SPL: 126 dB
HF: 4x 4" - 1" v.c. Neodymium
LF: 1x 10" - 2.5" v.c.
Horizontal Directivity: Dependent on Focus Preset
Vertical Directivity: Dependent on Focus Preset
Amplifier
Amplifier: 400 W RMS Class D Digipro® G3
Cooling: Convection
Power Supply: Auto-range SMPS
Processor
Controller: DSP 28/56 bit
Converter AD/DA: 24 bit/48 kHz
Limiter: Peak, RMS, Thermal
Processing (filters): Linear Phase FIR Filters

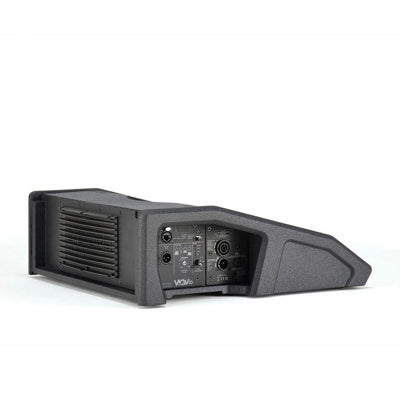

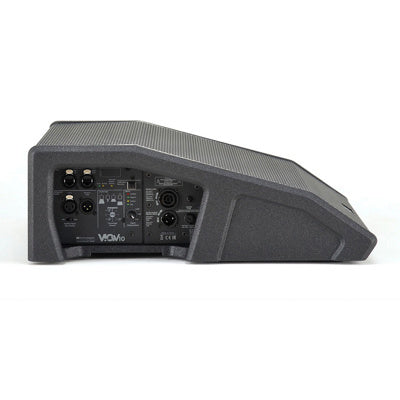

Input
Signal Input: 1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)
Signal Output: 1xXLR male, 1x RJ45 Link (RDNet)
Power Socket:1x PowerCON TRUE1 In1xPowerCON TRUE1 Out
Controls:1x Rotary Encoder (8 presets)1 x Input Sensitivity Encoder1xMic /line switch1x On LED1x Status -LED1x Signal LED1x Limiter LED
